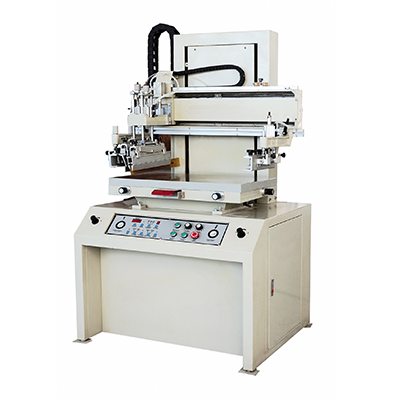

Description:
1. XYR adjusting table
2. Pneumatic printing head lifting system
3. Printing head driven by motor with linear guides
4. Mesh peeled off system
5. Easy operation and well programmed panel
6. Well safety protection with CE.
Option:
1． T-slot without vacuum
2． Pneumatic driven head (standard for S3040)
3． Sliding table driven by motor with linear guides
4． PLC control, touch screen display
Tech-data:
|
Parameter \ Item |
S3040 |
S4060 |
S5070 |
S6080 |
|
Max. mesh frame size(mm) |
600*800 |
700*1000 |
800*1100 |
900*1200 |
|
Max. printing area (width*length/arc)mm |
300*400 |
400*600 |
500*700 |
600*800 |
|
Worktable size (mm) |
400*550 |
500*800 |
600*900 |
700*1000 |
|
Table sliding stroke(mm) |
400 |
500 |
600 |
700 |
|
Max. substrate diameter/height(mm) |
150 |
150 |
150 |
150 |
|
Printing speed: pcs/hr |
1300 |
1200 |
1100 |
800 |
|
Net. weight (kgs) |
300 |
350 |
400 |
450 |
|
Power |
110/220V 50/60HZ 40W |
|||
