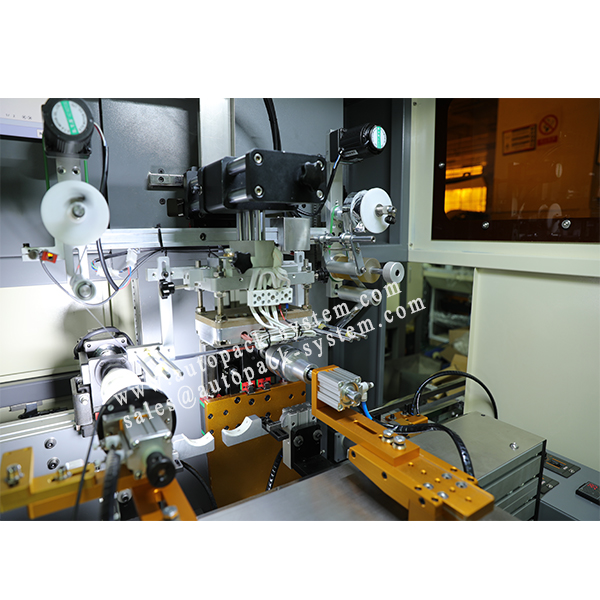

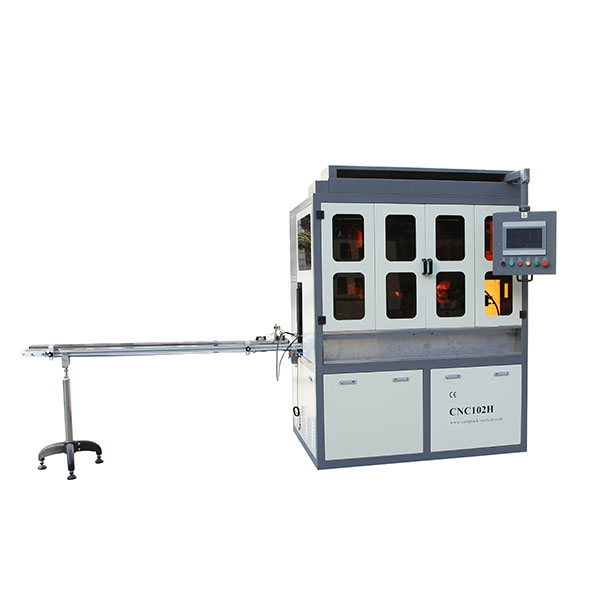

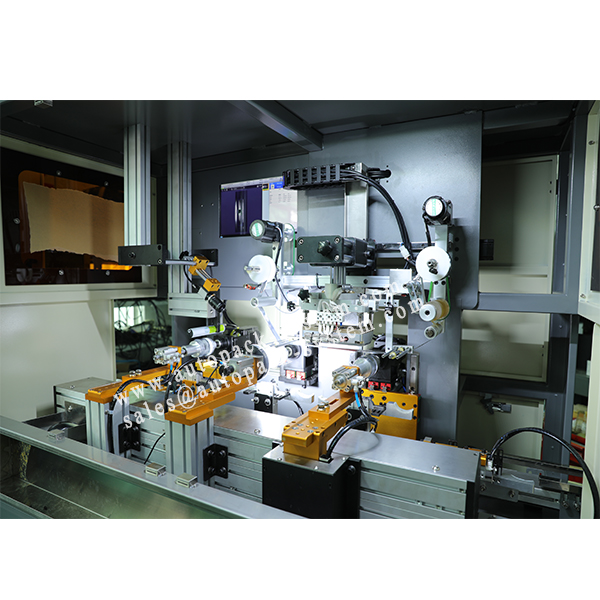

APM-CNC102HR All servo driven hot stamping machine


All shapes of glass bottles, cups, mugs. It can stamp any shape of containers all around in 1 print.

Product Information


Application :

All shapes of glass bottles, cups, mugs. It can stamp any shape of containers all around in 1 print.



General Description

1. Auto loading belt

2. Mechanical registration

3. Servo motor driven: pre-registration, product rotate, product left/right moving, product up/down moving, foil winding

4. Multi sides printing in one process.

5. Super quick and easy change over from one product to another.

6. All parameters automatic setting simply in touch screen.

7. Automatic unloading with servo robot. Bottle standing unloading.

8. Safety operation with CE.

9. Repeat print to be multi colors.



Optional:

Camera vision system, for cylindrical products without registration point. Repeat print to be multi colors.



Tech-data

Max. speed

20-30pcs/min

power

380V, 3P 50/60Hz

Air supply

6-8Bar



Round Container

Printing Dia.

20-90mm

Printing Length

30-180mm



Square/Irregular container

Printing Width

20-100mm

Printing Length

30-180mm

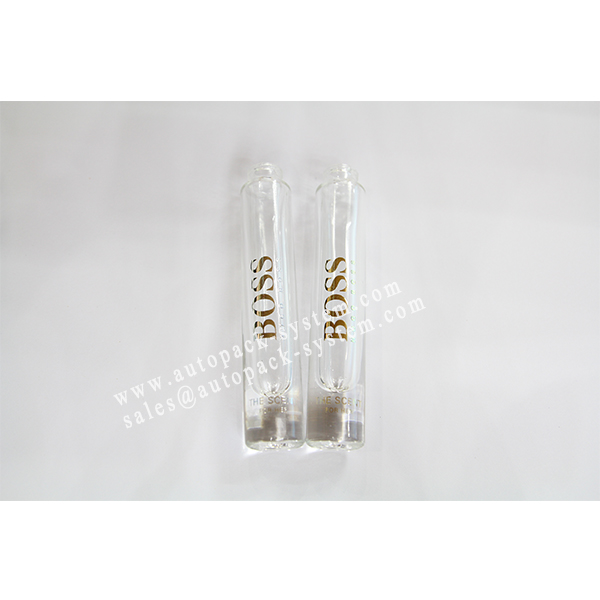

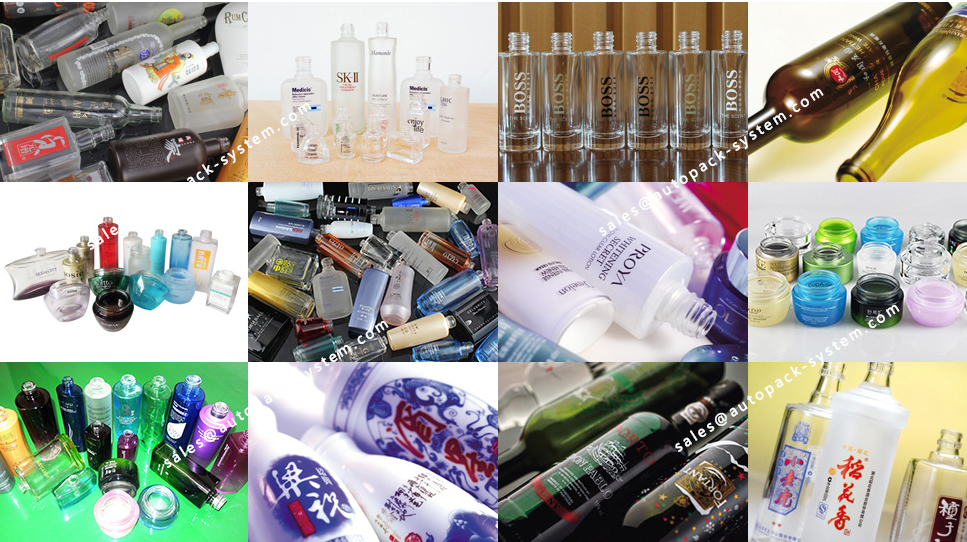

Samples:


Video:
