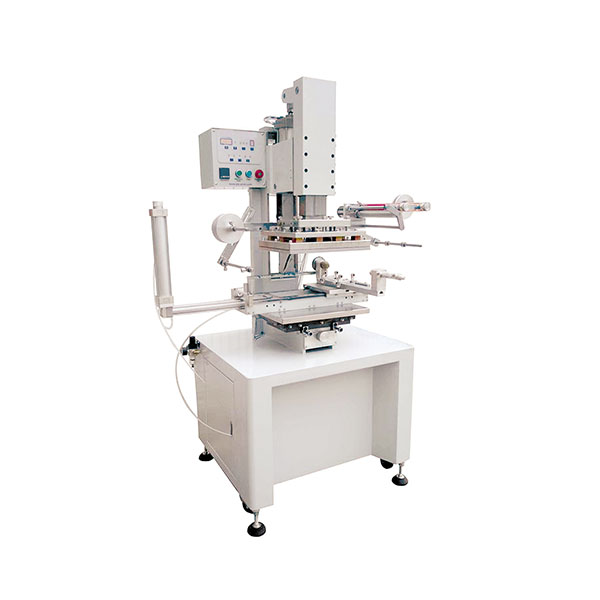

H200/250 Hot Stamping Machine
H200/250/400-2T Hot Stamping Machine with 2T pressure
Flat Round Special for basket
Description
1. Crank design, strong pressure and low air consumption.
2. Stamping pressure, temperature and speed adjustable.
3. Worktable can be pushed in and out manually for safety operation.
4. Worktable can be adjusted left/right, front/rear and angle.
5. Auto foil feeding and winding with adjustable function.
6. Height of stamping head adjustable.
7. Worktable shuttle with gear and rack for round product stamping.
8. It is widely used for electric, cosmetic, jewelry package, toy surface decoration.
Tech-data:
|
Model |
H200/H200S |
H200FR |
H250/H250S |
H250FR |
|
Max stamping area |
150x200 |
200x250 |
||
|
Worktable Size |
200x250 |
200x200 |
250x300 |
200x250 |
|
Stamping Head Stroke |
50 |
|||
|
Max. article Height |
235 |
|||
|
Temperature |
Room Temp.~280℃ |
|||
|
Stamping Pressure |
≤500kgf |
|||
|
Max. Stamping Speed |
1300 |
1000 |
1300 |
1000 |
|
Air Pressure |
5-7 bar |
|||
|
Power Supply |
220V 60Hz/50Hz |
|||
Stamping pressure:
H200/250: 500kgs
H200/250/400-2T: 2000kgs
