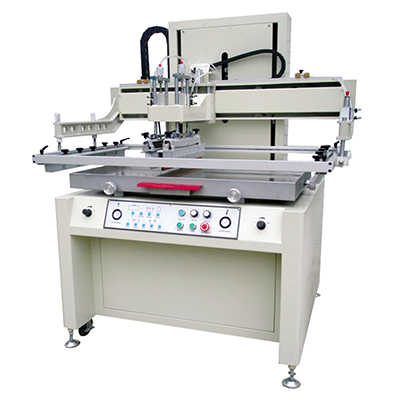

Description:
1. SMC/Festo pneumatics
2. XYR adjusting table
3. Pneumatic printing head lifting system
4. Printing head driven by motor with linear guides
5. Printing head up/down driven by motor
6. Mesh peeled off system
7. Easy operation and well programmed panel
8. Well safety guarding with CE.
Option:
1． Sliding table driven by motor with linear guides
2． Automatic unloading with robot and belt transfer system
3． PLC control, touch screen display
Tech-data:
|
Parameter \ Item |
S6080 |
S70100 |
S90120 |
|
Max.mesh frame size(mm) |
900*1200 |
1000*1400 |
1200*1600 |
|
Max.printing area(width*length/arc)mm |
600*800 |
700*1000 |
900*1200 |
|
Worktable size (mm) |
700*1000 |
800*1200 |
1000*1400 |
|
Table sliding stroke (For S6080S) |
700mm |
800mm |
1000mm |
|
Max.substrate diameter/height(mm) |
150 |
150 |
150 |
|
Printing speed:pcs/hr |
800 |
700 |
500 |
|
Net.weight (kgs) |
450 |
550 |
800 |
|
Power |
110/220V 50/60HZ 40W |
||
