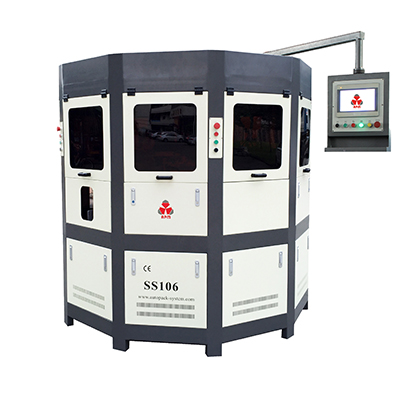

APM-SS106 All servo screen printer with UV system


The machine SS106 is designed for multi colours decoration of plastic/glass/metal bottles, wine caps, jars, tubes at high production speeds. It is suitable for bottles printing with UV ink. And it is capable of printing cylindrical containers with or without registration point. Reliability and speed make the machine ideal for off-line or in-line 24/7 production.


Product Information


Application:

Bottles, cylindrical containers with or without registration point



Description:

1.Automatic roller loading belt, auto feeder optional

2.Auto flame treatment or auto anti-static dust cleaning system before printing optional

3.Screen printing and hot stamping in 1 process

4.All servo driven screen printer/hot stamping with best accuracy:

*mesh frames driven by servo motors

*all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)

5.Auto UV drying

6.No products no print function

7.High accuracy indexer

8.Auto unloading belt

9.Well built machine house with CE standard safety design

10.PLC control with touch screen display


Options:

1.Screen printing head can be replaced to hot stamping head.

  make multi-color screen printing and hot stamping in line.

2.Fully automatic loading system with hopper and bowl feeder or elevator shuttle.

3.Vacuum system in mandrels

4.Moveable control panel(Ipad,mobile control)

5.Printing heads installed with servo to be CNC machine,can print different shapes of products.

6.CCD registration optional for products without registration point but need to do registration.


Tech-data:

Parameter\Item
SS106
Power 380VAC 3Phase 50/60Hz
Air consumption 6-8 bars
Max printing speed 2400-3000pcs/h
Printing Diameter 15-90mm
Printing Length 25-200mm

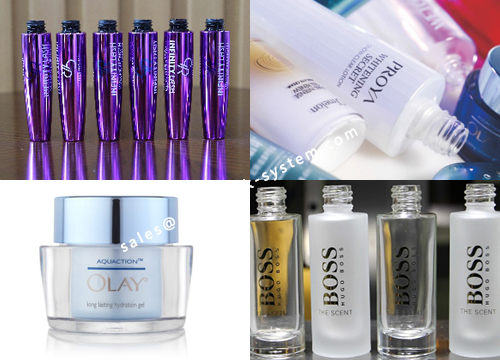

Samples:

Video:
