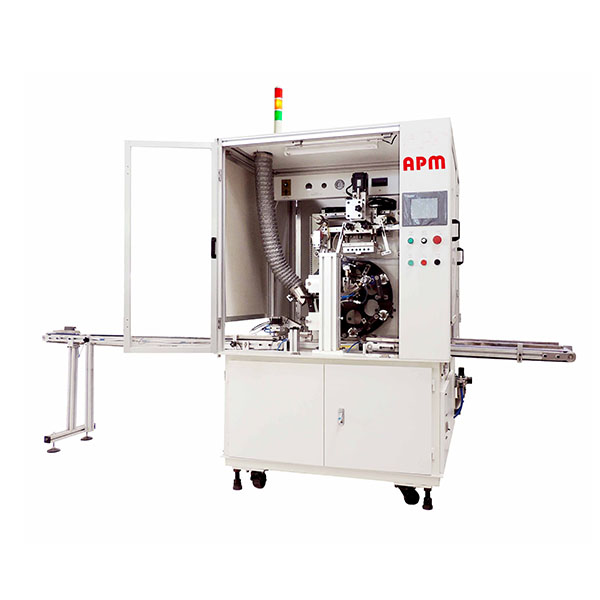

The H200B is designed for hot stamping of caps or cosmetic tubes at high production speeds. Reliability and speed make the H200B ideal for off-line or in-line 24/7 production.
Application:
The H200B is designed for hot stamping of caps or cosmetic tubes at high production speeds. Reliability and speed make the H200B ideal for off-line or in-line 24/7 production.
Description:
1. Automatic loading system with conveyor and vacuum robot
2. Anti-static dust cleaning before stamping
3. High accuracy indexer from Japan
4. Auto foil feeding and winding.
5. Height of stamping head adjustable. Stamping pressure adjustable.
6. Auto foil dust cleaning before unloading
7. Well built machine house with CE demand for safety production.
8. Reliable PLC control with touch screen display.
Tech-data:
|
Model |
H200B |
|
Max stamping area |
120×80mm |
|
Stamping Head Stroke |
50mm |
|
Max. article Height |
75mm |
|
Temperature |
Room Temperature~280℃ |
|
Stamping Pressure |
≤500kgf |
|
Max. Stamping Speed |
40-60pcs/min |
|
Air Pressure |
4~7bar |
|
Air Consumption |
≤80L/min |
|
Power Supply |
220V 60Hz/50Hz |
|
Heating Power |
1000W |
|
Weight |
500kg |
