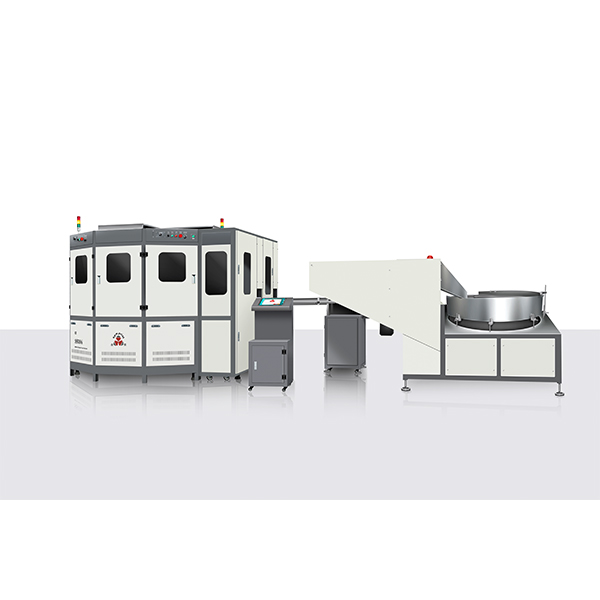

APM-SS106-4 Automatic 3 color screen printing and 1 color hot stamping machine for bottles


The machine SS106 is designed for multi colours decoration of plastic/glass bottles, wine caps, jars, tubes at high production speeds. It is suitable for bottles printing with UV ink. And it is capable of printing cylindrical containers with or without registration point. Reliability and speed make the machine ideal for off-line or in-line 24/7 production.

Product Information



Application:

The machine SS106 is designed for multi colours decoration of plastic/glass bottles, wine caps, jars, tubes at high production speeds. It is suitable for bottles printing with UV ink. And it is capable of printing cylindrical containers with or without registration point. Reliability and speed make the machine ideal for off-line or in-line 24/7 production.



Description:

Automatic roller loading belt (Special fully auto system optional)

Auto flame treatment

Auto anti-static dust cleaning system before printing optional

Auto registration to print products escape the molding line optional

Screen printing and hot stamping in 1 process

All servo driven screen printer with best accuracy:

*mesh frames driven by servo motors

*all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)

Auto UV drying

No products no print function

High accuracy indexer

Auto unloading belt (standing unloading with robot optional)

Well built machine house with CE standard safety design

PLC control with touch screen display



Tech-data:

Max printing diameter

(bigger diameter machine available with extra cost)

40mm

Max printing length

120mm

Max printing speed

30-45pcs/min

UV power UV

3000watts

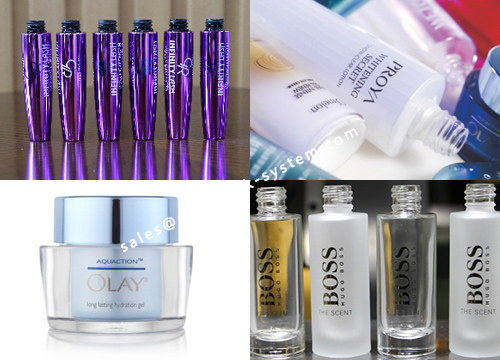

Samples:
