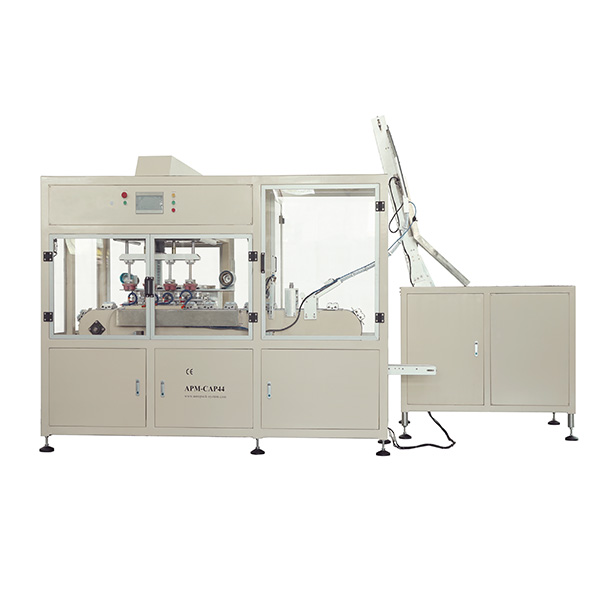

APM-CAP44 Automatic Pad Printer For Caps



Caps Master CAP44 is a fully automatic pad printing system for caps printing. It is combined with auto loading, caps locking, flame treatment, printing, drying and unloading all in 1 system. Easy setting up, fast and durable running makes Caps Master CAP44 a stable and economic solution for caps printing.


Product Information



Application:

Beverages caps, wine caps, medicine caps, oil caps



Description:

Automatic loading with hopper and special loading system

Auto flame treatment with electric ignition

1-4 colors printing

Automatic heating system after printing to dry the caps

Motor driven conveyor, conveyor chain made in Japan

Auto unloading

Auto pad cleaning for better printing result

Well built machine house with CE standard safety design

Panasonic PLC and touch screen



Tech-data:



Plate size

Colors

Max Speed (pcs/hr)

CAP44

100x150mm

2 color

15000pcs/hr for 28mm caps

4 colors

6000-10000pcs/hr for 28mm caps
