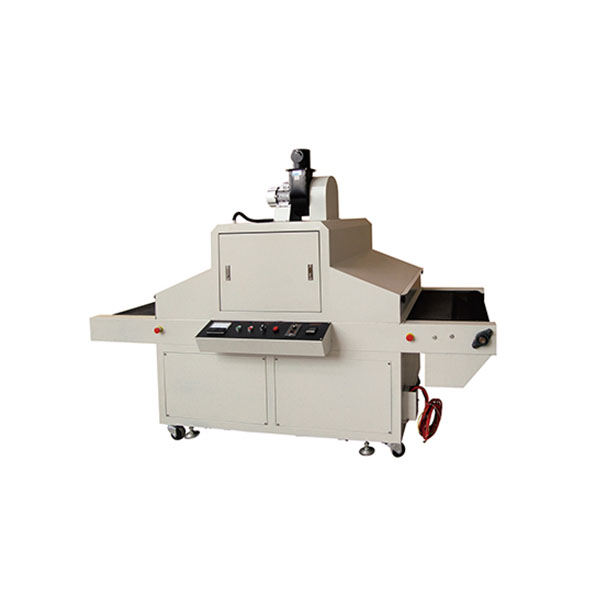

Product Information

Description:

1.   Conveyor speed adjustable.

2.   Half light or full light adjustable, the distance between UV

lamp and  substrate adjustable.
3.  The air exhauster is installed on the top to exhaust the heat in curing

chamber  to cool down the system and extend the lamp lifetime.

4Belt optional: Teflon belt, stainless steel or aluminum plate
5.  High quality control parts, reliable quality and user friendly.


Tech-data:

Tech-data

UV900

UV1000

Max. Curing Size(w*h)mm

900*1000

1000x1000

Conveyor SpeedRange

0-10m/min

Speed Adjusting Mode

electronic stepless mode

Total Wattage

13.5KW

13.5KW

Lamp Wattage

12KW

12KW

Air Exhaust Fan Power Supply

750W/1P/220V

Conveyor Motor Power Supply

12.5acitor0W/1P/220V

120W/1P/220V

Power supply

380V

380V
