Product Information

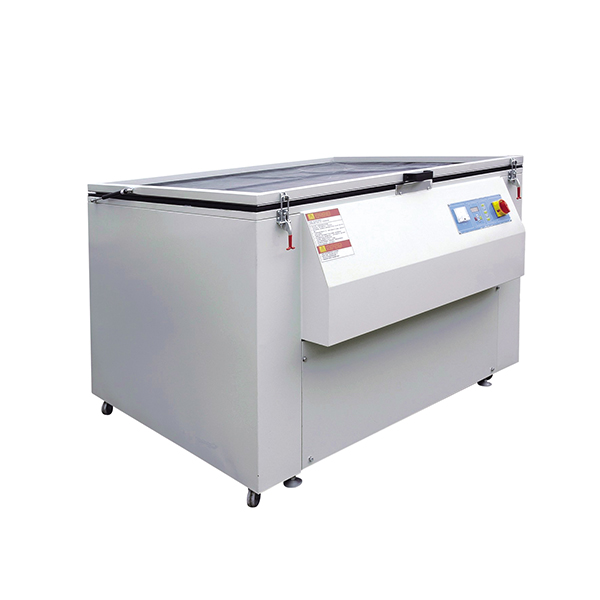

Description:

1. Microcomputer control, easy operation, high speed and equal exposing.

2. Installed with cooling fan to decrease the temperature, keep the machine

under room temperature when working.

3. Quick start bulb. When turn off the machine, you can restart the machine

within two minutes.
4. High quality reflector film from German, reflecting the light to all the corners.
5. Suitable for four color mesh dots exposing.
6. Used for making mesh frame for printing ceramics, signboard, outdoors

advertisement, PCB and screen stencil etc.


Tech-data:

Model

E8010

E1013

Max. mesh frame area

900*1100mm

1000*1300mm

Max. exposing area

1000*1200mm

1200*1500mm

Bulb

3000W air cooling halogen bulb

Vacuum pump

220V 1/5HP non-oil pump

Power supply

220V/35A/50HZ

Measurement

1000*1200*950mm

1200*1500*1000mm

Net weight

180kg

230kg
