Application:

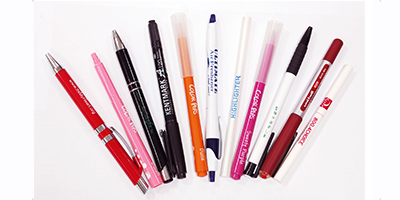

Pen sleeves, pencils, lip painters, syringes, candles, etc., with solvent or UV ink.
Description:
1. Auto loading with hopper
2. IR drying or UV curing optional.
3. Cooling system before unloading.
4. Auto unloading with unloading slot.
5. Motor driven, no compressed air required.
Technical data:
|
Printing diameter |
3-20mm |
|
Printing length |
70-180mm |
|
Printing stroke (left to right) |
20-80mmadjustable |
|
Max conical |
3° |
|
Min blank length on both ends (can not be printed) |
8mm |
|
Printing speed |
3600-4800pcs/hr |
|
IR output |
1900w |
|
Power supply |
220V, 50/60Hz, 4.5KW |
Video:
