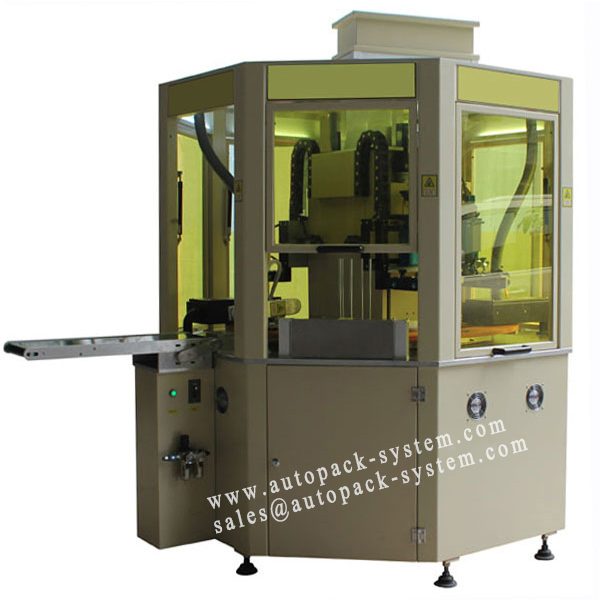

APM-62 Automatic 2 color ruler screen printer

Application:

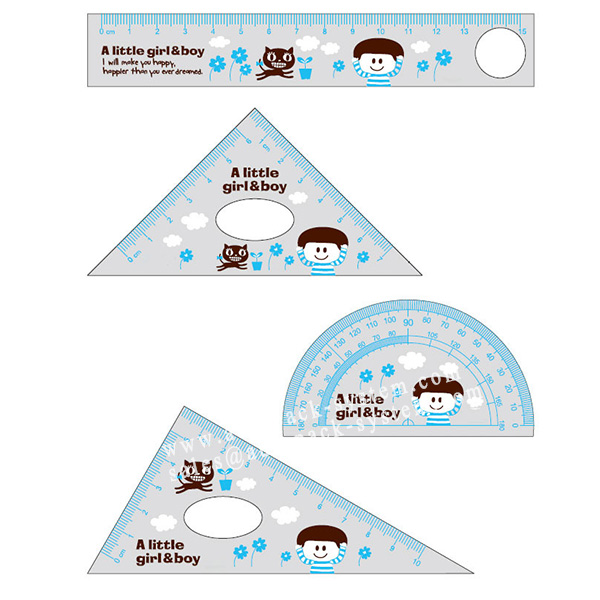

Straight rulers, right triangle rulers, regular triangle rulers, protractors and so on.

Different rulers print at the same time or multi prints at the same time.

(Different solution with different loading system, unloading system and fixtures)

Product Information

Description:

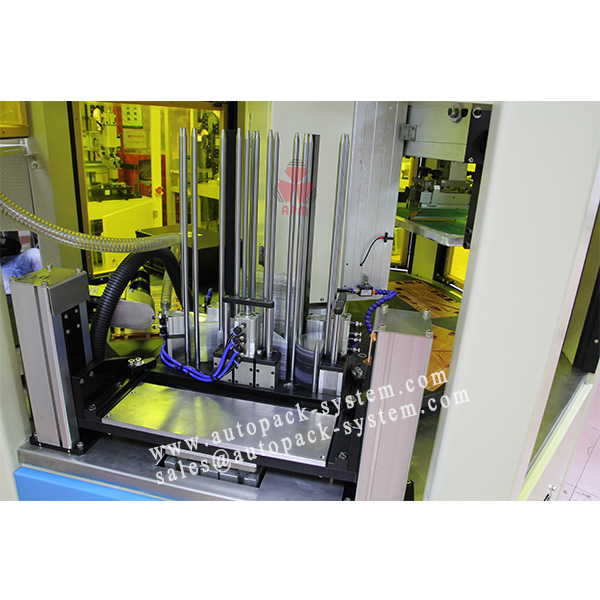

1. Auto loading rack for 4 kinds of rulers, other racks optional

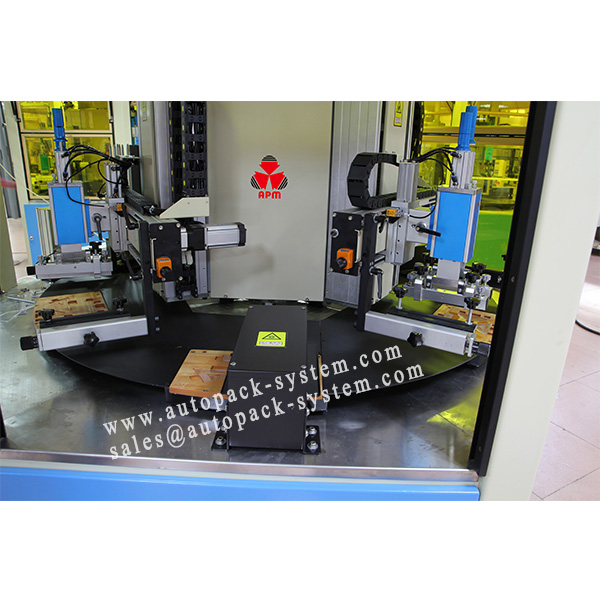

2. 6 station indexer

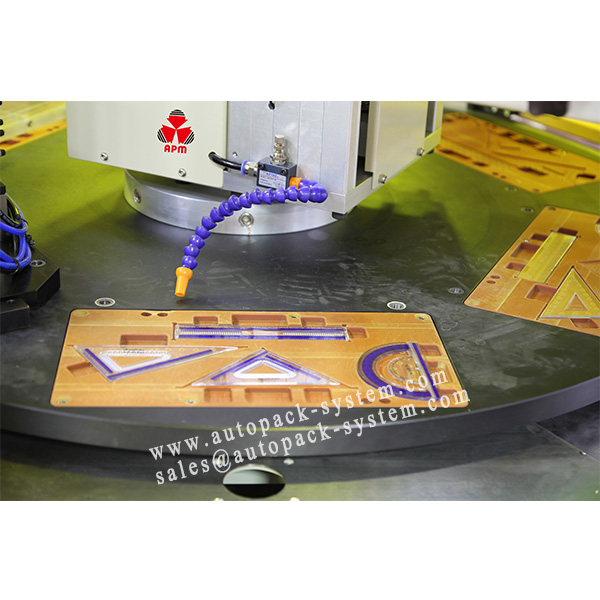

3. Fixture with vacuum

4. PLC control, Touch screen display

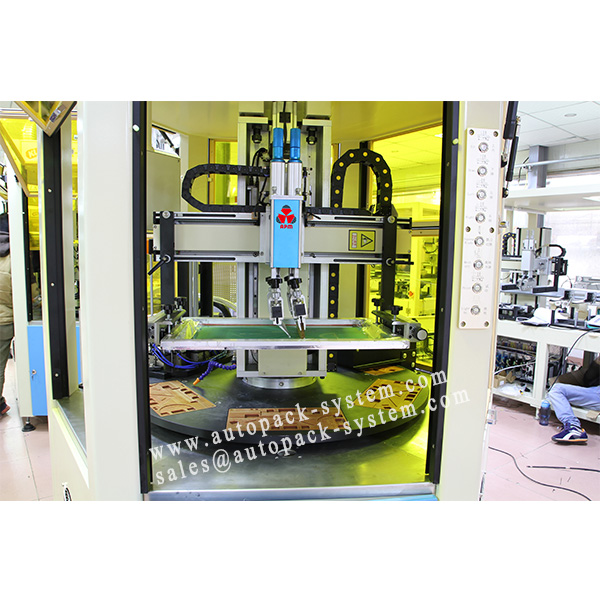

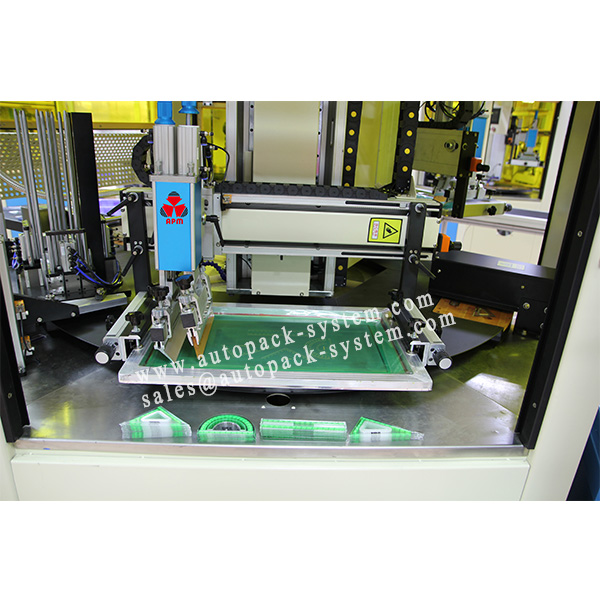

5. All servo motor driven: mesh frame up/down, printing, indexer, registration

6. Color registration tolerance: +0.05mm

7. Multi prints at the same time

8. LED drying after each color printing

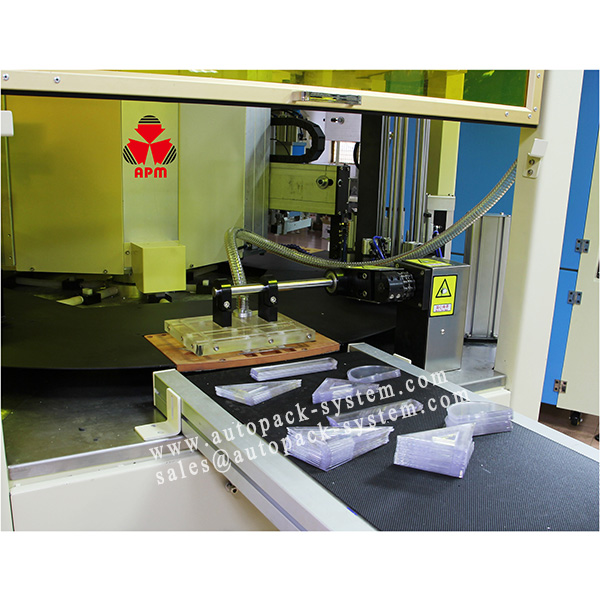

9. Auto unloading belt with robot

10. Well safety protection with CE.



 Tech-data

Printing colors: 2

Max.printing size: 200x300mm

Max.frame size: 250x500mm

Indexer station: 6 stations

Max. printing speed: 4000~4800pcs/hr

Air pressure: 6bars

Power supply : 3phase, 380V, 50Hz

Power: 9.5KW

Dimension(LxWxH): 1750x1750x1800mm

Weight: 1950KG
