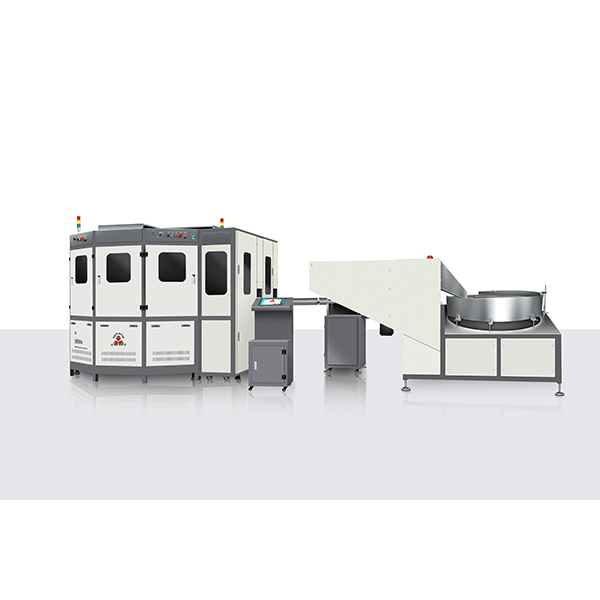

APM-SS106 Multicolor screen printing and hot stamping machine (All servo motor driven)

The machine SS106 is designed for multi colours decoration of plastic/glass/metal bottles, wine caps, jars, tubes at high production speeds. It is suitable for bottles printing with UV ink. And it is capable of printing cylindrical containers with or without registration point
Product Information

Application:

Bottles, cylindrical containers with or without registration point


Main Features

1.Automatic loading and unloading belt, dressing roller belt is optional avoid product scrape

2.Made in Japan Sandex Indexing table systemdesigned for optimum accuracy.
3.Servo driven automatic printing system to :
-mesh frame left/right moving
-all jigs controlled by individual servo motor for rotation
4.Quick and easy change over from one product to another. with all parameter settings automated by touch screen.
5.Auto UV curing after printed, electric UV system with high efficiency
-Primarc UV lamp from Europe
-LED UV system optional
6.Safety system of operation CE approved.

7.Language English: Manual and Touch Screen


Tech-data:

Parameter\Item
SS106
Power 380VAC 3Phase 50/60Hz
Air consumption 6-8 bars
Max printing speed 2400-3000pcs/h
Printing Diameter 15-90mm
Printing Length 25-200mm

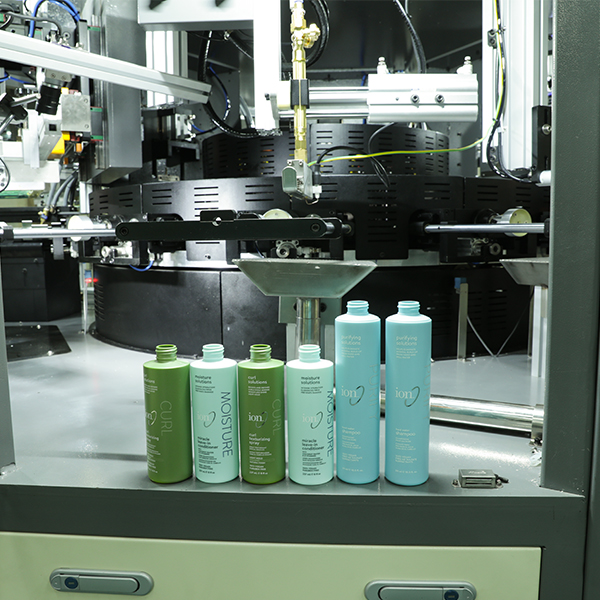

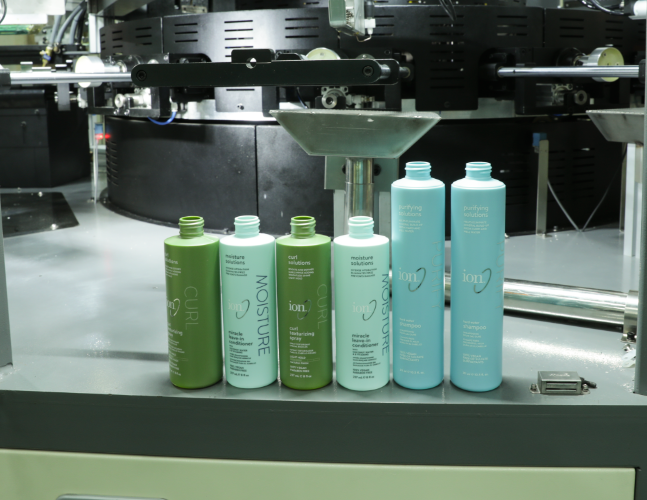

Samples:


Video:
