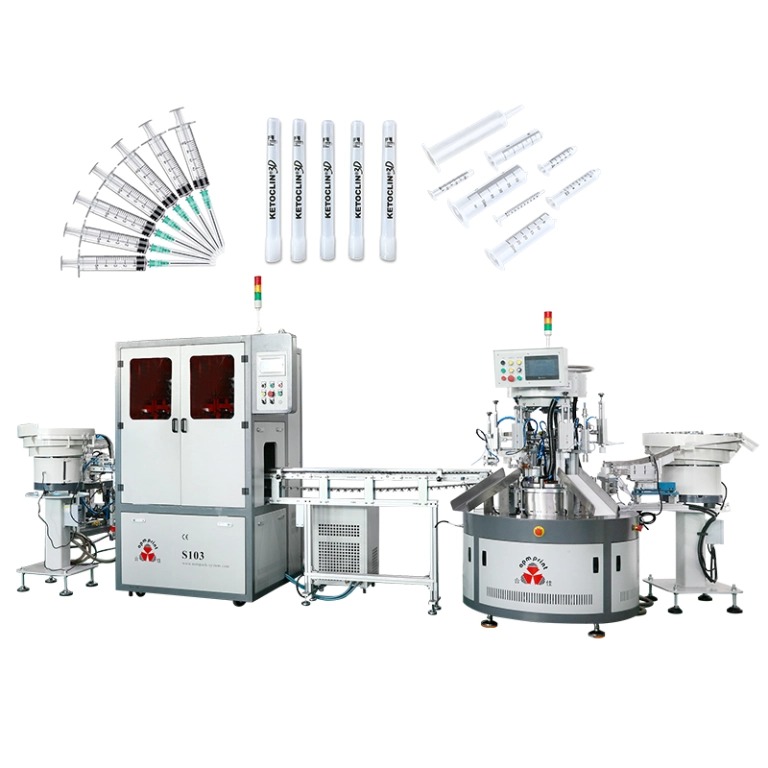

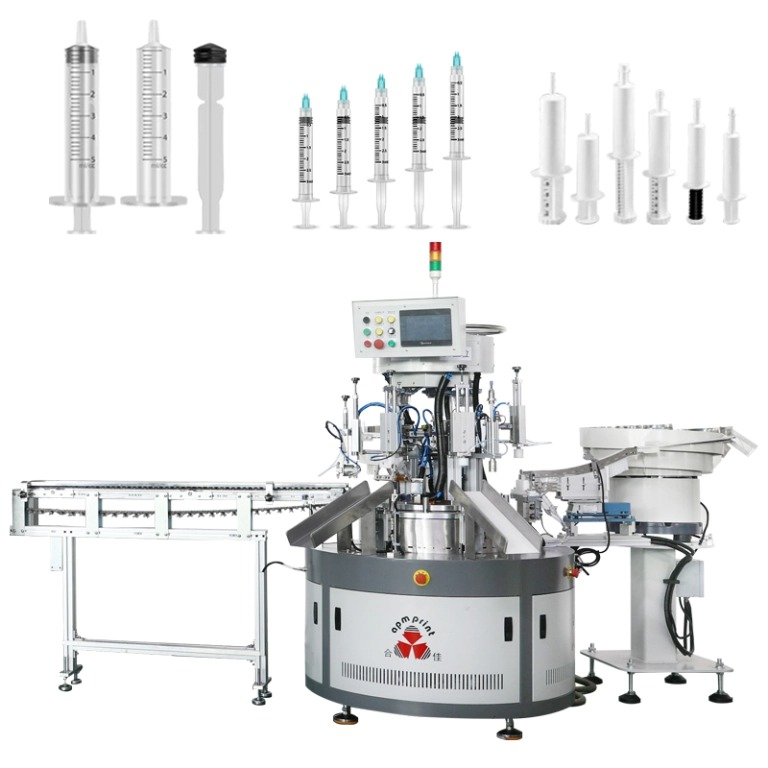

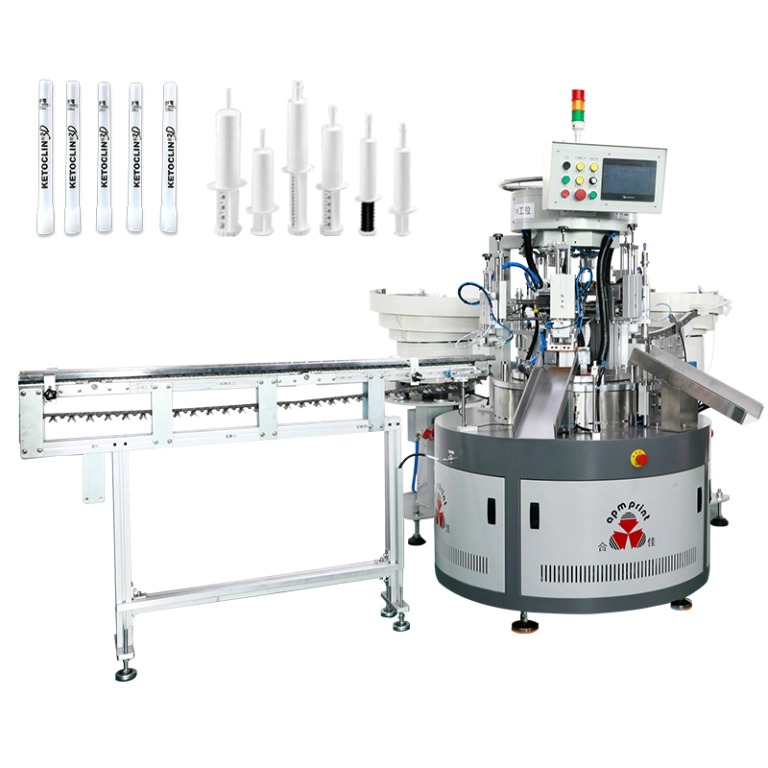

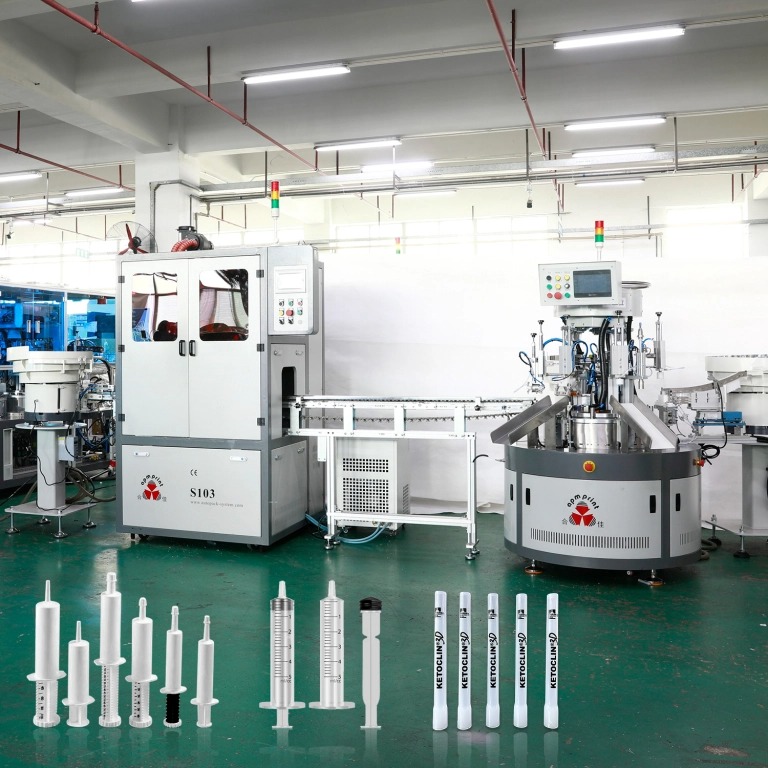

This assembly machine is designed for medical applicator, syringe assembly, can be connected to the screen printing machine, first printing and then assembly, printing and assembly of one, reducing the operation process, saving labor.

Syringe assembly Process:

Out cover auto loading--inner part auto loading--pressing detect--Assembled product detect unloading--unfinished product detect and unloading.

 Description:

1. Auto loading system for the outside part

2. Auto loading system for the inner part

3. Sensor detects whether assembly is successful or not

4. PLC control, touch screen display, Parameters adjustable

5. During the assembly process, fully automatic sensor detection;

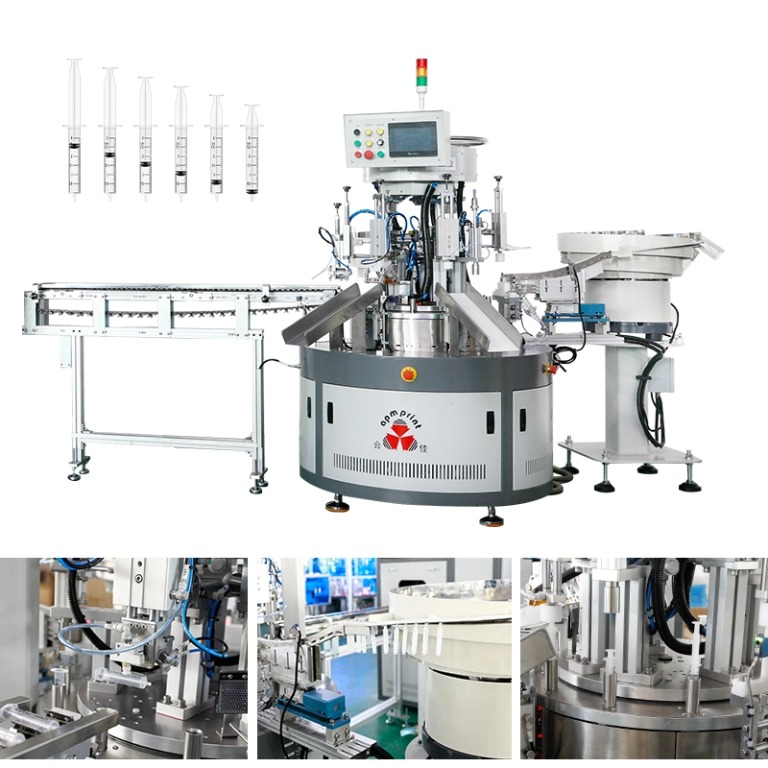

6. This machine adopts a turntable structure, which greatly reduces the equipment’s floor space;

7. All key components are made of Japanese and European components, effectively ensuring the quality of the equipment and reliability of use;

8.  The main machine turntable adopts a dual structure of intermittent division and cam brake braking to ensure the positioning accuracy during the assembly process ;

9. The structural design is user-friendly. As long as some modifications are made, other products of the same type can be automatically assembled to avoid idle equipment and waste of resources.
