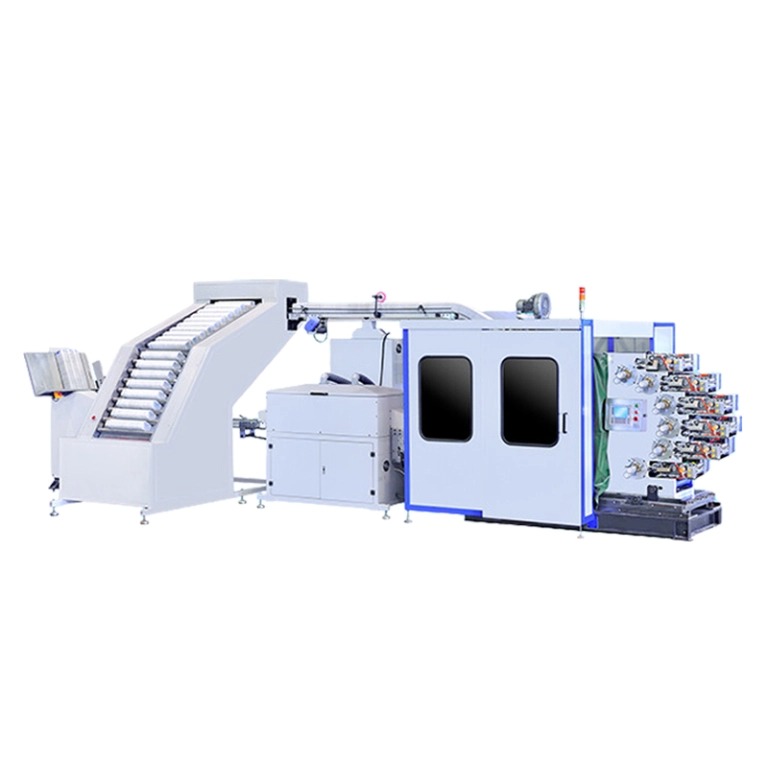

APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer

The APM-6500 box offset printer is a food container printing machine for offset printing on oval, square or rectangular plastic containers with a max. printing length of 550mm, and max. printing speed can be up to 150pcs/min, which can print 6 colours.
Product Information

Product Details

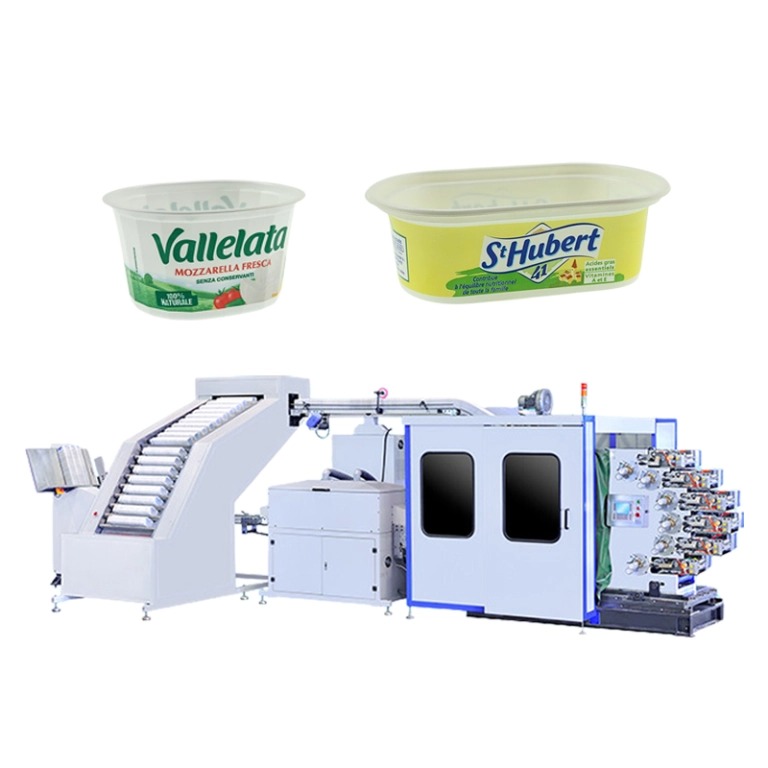

APM-6500 automatic box offset printing machine can print up to 6 colors,  which can print on yogurt box, ice cream box, crisper box, plastic lunch box and various food packaging boxes.

Tech-data

Model Number

APM-6500

Product Name

High Speed Plastic Box Printing Machine

Maximum Printing Speed

150pcs/min

Printing Color

6 colors

Size to be printed

L150mm*W100mm*H120mm

Printing Area

L500mm *H100mm(Max)

Power

20 KW

Applicable Material

PP、PS、PET

MOQ

1set

Features

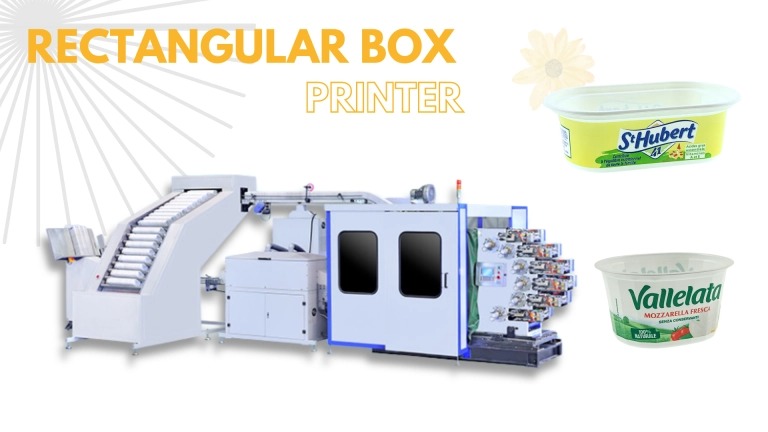

Automatic Rectangular Box Feeding System

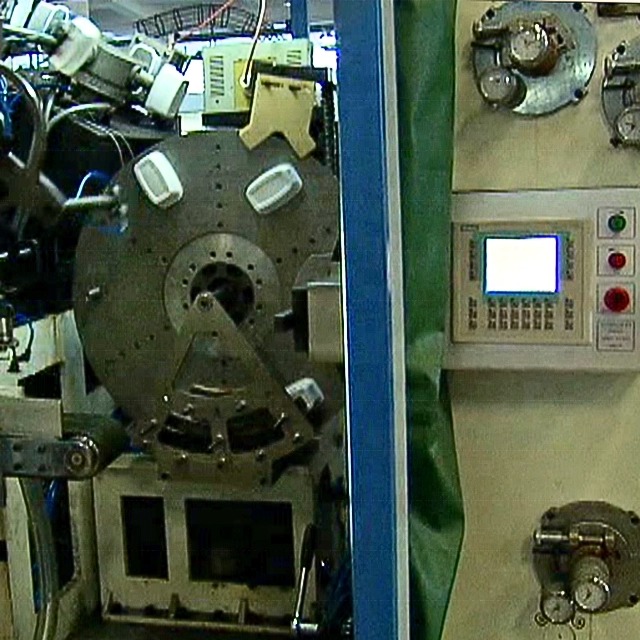

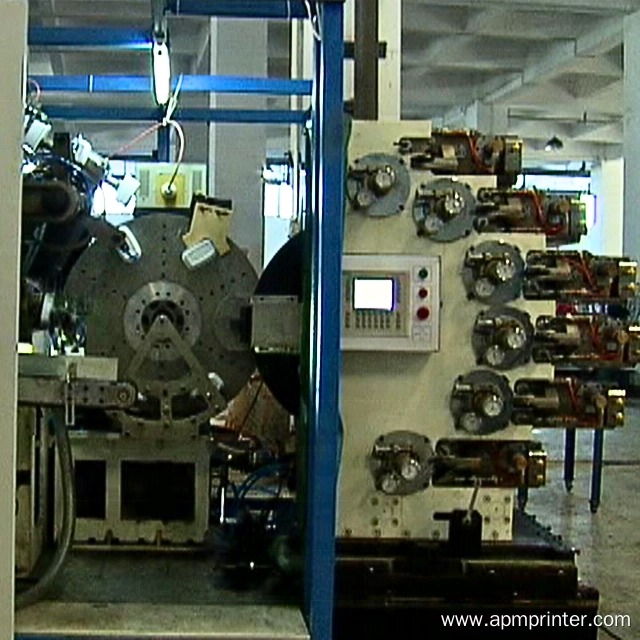

Machine Detail

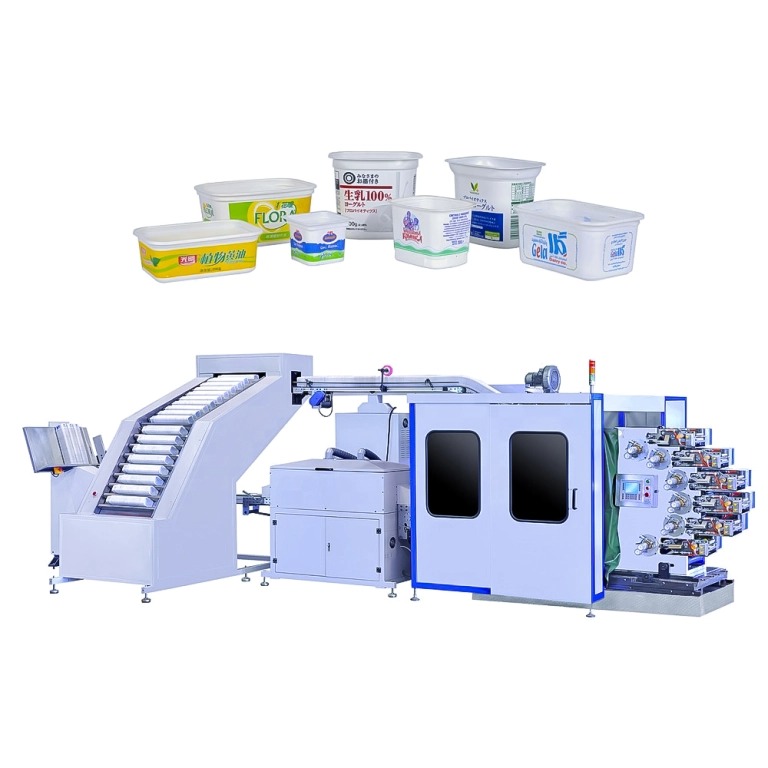

Application

General Description

1. Auto-loading and unloading system (Can custom loading system according to special requirements)

2. Auto flame treatment

3. Auto UV drying system

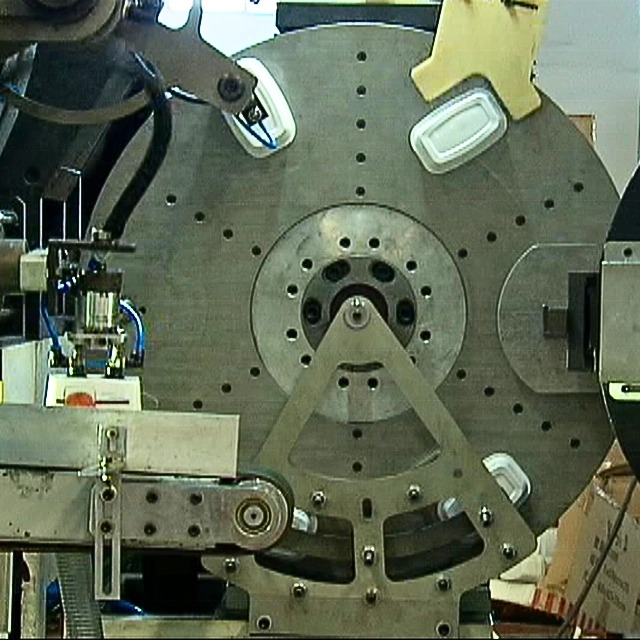

4. High-accuracy indexer

5. High-speed offset printing


Technical Process

Cup feeding → Corona treatment → Printing→ UV Curing→ Cup out


Electrical Components & Its Brand
1)SWITCH Schneider
2)SIGNAL LAMP GQELE
3)CONTACTOR Schneider
4)THERMAL OVERLOAD RELAY Schneider
5)PLASTIC FIBRE OPTIC LIGHT GUIDE & AMPLIFIER FOTEK
6)CIRCULT BREAKER ABB
7)Timing Belt Japan
8)Inverter Delixi
9)Intermediate Relay ABB
10)PLC SIEMENS
11)Air Cylinder AIRTAR、CHBH, etc
12)Main Motor SIEMENS
13)Displayer of PLC SIEMENS
14)Corona Made in China
15)Indexer Made in China




List of Free Spart Parts for the Machine
Description Quantity
Plate hole punch 1 pc
Toolbox 1 set
“Loading cup unit”Timing belt 2 pcs
Forming roller 1 pc
Middle roller 1 pc
INK Form roller 1 pc
Belt for Blanket Cylinder(Installed on the Machine) 1 pc
UV lamp 2 pc
Blanket sticker 2 pcs
Blanket 0.2 sqm
Magnetic base 1 set
Pipe joints φ12 4′Straight joint 1 pc
Pipe joints φ12 4′Elbow 1 pc
Pipe joints φ12 2′Through Type 1 pc
Pipe joints φ12 2′Elbow 1 pc
SMC Pipe joint φ4 1′Three Way 4 pcs
SMC Pipe Joint φ4 M5 Elbow 2 pcs
Magnetic Switch 2 pcs
Photo Sensor MF-30X 1 pc
Optical Fibre Amplifier 1 pc
Auxiliary relay 2 pcs
Cup Printer Instruction Manual 1 pc



Main product

Screen Printing Machine

Bottle screen printing machine, Cup screen printing machine, Tube screen printing machine, Jar screen printing machine, Cap screen printing machine, Syringe screen printing machine, Bucket screen printing machine,  Perfume bottle screen printing machine, Glass screen printing machine, Plastic screen printing machine, Paper screen printing machine, Automatic screen printing machine, Cosmetic container printing machine, Cylindrical screen printing machine, Flat screen printing machine, Servo screen printer, Servo bottle screen printing machine, CNC printing machine, UV screen printing machine.

Bottle cap hot stamping machine, Glass hot stamping machine, Plastic hot stamping machine, Bottle hot stamping machine, Cup hot stamping machine, Tube hot stamping machine, Perfume bottle hot stamping machine, Cosmetic container stamping machine, Jar hot stamping machine.

Pad Printer

Bottle pad printing machine, Plastic cup pad printing machine, Clothes pad printing machine, Ceramics pad printing machine, Cap pad printer.

Labelling Machine

Water bottle labelling machine, Automatic labelling machine, Wine bottle labelling machine, Wines labelling machine, Drinks labelling machine

Food packaging box labelling machine, Cosmetic container labelling machine.

Dry Offset Printer

Cap offset printing machine, Cup offset printer, Plastic cup printing machine, Tube printing machine, Box offset printing machine, Lid offset printer, Bucket offset printer, Plastic bucket printing machine, Bowl offset printing machine, Ice-cream box offset printer, Flowerpot printing machine, Flexible tube offset printer, Soft tube dry offset printing machine, Coffee cups offset printing machine.

Assembly Machine

Wine bottle cap assembly machine, Syringe assembly machine, Lipstick tube assembly machine, Cosmetic container assembly machine.


COMPANY PROFILE

Automatic Printing Machine Co.Limited(APM), We are a top supplier of high-quality automatic screen printing machines, hot stamping machines, labelling machines, dry offset printers, and pad printers, as well as automatic assembly lines, UV painting lines and accessories.









And we have more than 25 years of experience and hard work in R8D and manufacturing.

We are fully capable of supplying machines for all kinds of packaging, such as wine caps, glass bottles, water bottles, cups, mascara bottles, plastic tubes,  syringes, lipsticks, jars, power cases, shampoo bottles, pails, various cosmetic container etc.





All machines are built with CE standards




Our Advantage

Established in 1997, our company is one of the oldest manufacturers able to design and build fully automatic multi-colour printing and stamping machines for glass and plastic substrates.


F.A.Q.
  • Q: What is Dry Offset Printing Machine??
    A: Dry offset printing machine is a specialized printing equipment that utilizes the dry offset printing process. This technique involves transferring ink from a metal plate to a rubber blanket before applying it to the printing surface. Notable for its ability to print on curved or uneven surfaces.
  • What are the applications of dry offset printing machines?

  • Q: What Applications for Offset Printing Machine
    A: Dry offset printing machine applications for plastic and paper containers multi-colour printing, like cups, buckets, caps, bowls and tubes.
  • Q: What is your production time?
    A: Normally it takes about 30-35 days for one machine.
  • Q: What is the warranty time for machines?
    A: One year for the machine, and six months for the electric parts.
  • Q: Where is your factory located?
    A: Our factory is located in SHANTOU, GUANGDONG, CHINA. requirements.
  • Q: Can Dry Offset machines handle high-speed printing without compromising quality?
    A: Yes, Dry Offset machines can handle high-speed printing while maintaining quality and precision.
  • Q: How easy is it to switch between different colours on a Dry Offset machine?
    A: Dry Offset machines offer ease in switching between different colours, facilitating diverse and vibrant printing.
  • Q: What brands do you print for?
    A: Our customers printing for BOSS, AVON, DIOR, MARY KAY, LANCOME, BIOTHERM, MAC, OLAY, H2O, APPLE, CLINIQUE, ESTEE LAUDER, VODKA, MAOTAI, WULIANGYE, LANGJIU...
  • Q: Can Dry Offset printers handle multi-colour printing effectively?
    A: Yes, Dry Offset printers are proficient in handling multi-colour printing, achieving vibrant and intricate designs.
