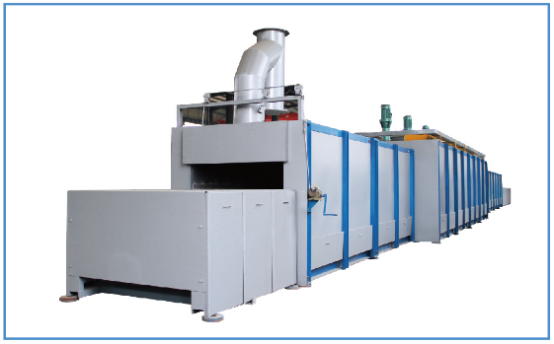

ELECTRIC GLASS DECORATING FURNACE APM-RK
ELECTRIC GLASS DECORATING FURNACE APM-RK
1. Hot air circulation type, decorating quality is stable.
2. Usina hot air circulation fan, inner tank made by double-deck stainless steel, electric heater uses nickel chromium wire.
3. Fast heating ,heating temperature is uniform, high thermal efficiency, low energy consumption.
4. Mesh belt uses 1cr18 or 1cr13. frequency control.
5. At the end of slow cooling zone installed waste heat recycling system, can save more than 30% energy.
ELECTRIC GLASS DECORATING FURNACE APM-RK SPECIFICATION
|
序号 |
项目 |
|
型号APM-RK主要技术参数 Specification |
|
|||||||
|
单位 |
APM- Rk600 |
APM- Rk800 |
APM- Rk1000 |
APM- Rk1200 |
APM- Rk1500 |
APM- Rk1800 |
APM- Rk2100 |
APM- Rk2400 |
|
||
|
1 |
网带宽度 |
mm |
600 |
800 |
1000 |
1200 |
1500 |
1800 |
2100 |
2400 |
|
|
2 |
网带高度 |
mm |
880-980 |
||||||||
|
3 |
网带速度 |
mm/min |
10-500 |
||||||||
|
4 |
许用最高温度 |
℃ |
620 |
||||||||
|
5 |
炉膛高度 |
mm |
350/400 |
||||||||
|
6 |
炉膛断面温差 |
℃ |
±2 |
||||||||
|
7 |
网带最大负荷 |
kg/㎡ |
90 |
||||||||
|
8 |
不锈钢内胆厚度 |
mm |
3 |
||||||||
|
9 |
减速电机功率 |
kw |
1.1-3 |
||||||||
