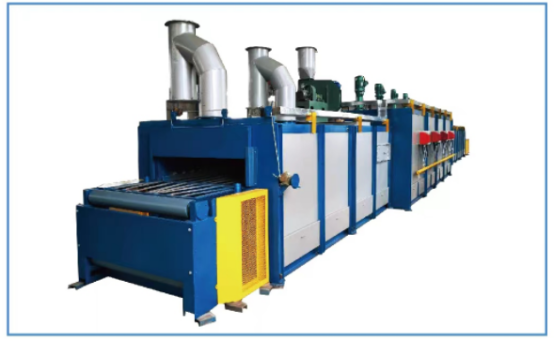

NATURAL GAS/COAL GAS GLASS DECORATING FURNACE APM-RKS


NATURAL GAS/COAL GAS GLASS DECORATING FURNACE APM-RKS


Product Information

NATURAL GAS/COAL GAS GLASS DECORATING FURNACE APM-RKS



1. Mesh belt is external circulation, also can be changed to internal circulation if the output become larger.

2. In the heating zone adopts hot alr forced circulation and temperature automatic controling, fast heating, heating temperature is uniform, automatic oxygen rich decorating, automatic exhausting the smoke.

3. Good insulation effect, high thermal efficiency, low energy consumption.

4. Germany proportional regulation technology, temperature controlling more precise, save more energy.




NATURAL GAS/COAL GAS GLASS DECORATING FURNACE APM-RKS SPECIFICATION

序号
NO

项目
 NAME



型号APM-RKS主要技术参数 Specification

单位
UNIT

APM-

RkS600

APM-

RkS800

APM-

RkS1000

APM-

RkS1200

APM-

RkS1500

APM-

RkS1800

APM-

RkS2100

1

网带宽度
Mesh belt width

mm

600

800

1000

1200

1500

1800

2100

2

网带高度
Mesh belt height

mm

880-980

3

网带速度
Mesh belt speed

mm/min

10-500

4

许用最高温度
Max temperature

620

5

炉膛高度
Combustion chamber height

mm

350/400

6

炉膛断面温差
Temperature difference of section

±2

7

网带最大负荷
Mesh belt max load

kg/

90

8

不锈钢内胆厚度
Thickness of inner tank

mm

3
