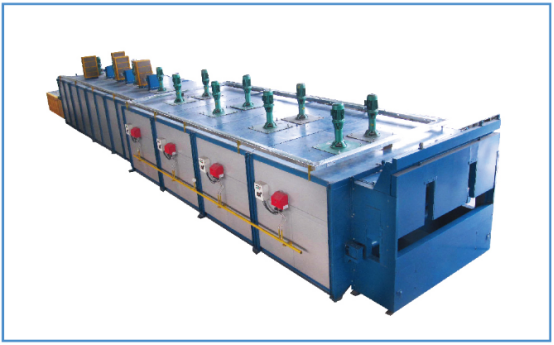

NATURAL GAS/COAL GAS GLASS ANNEALING FURNACE APM-RTS
NATURAL GAS/COAL GAS GLASS ANNEALING FURNACE APM-RTS
1. The whole furnace made by stainless steel, divided into several sections.
2. Hot air circulation type, inner tank made by double-deck stainless steel, combustion chamber also made by stainless steel.long service life.
3. The heatina zone adopts italy two-stage fire burners or proportionina burner.
4. Automatic control, temperature controlling more precision, accuracy is ±1℃
NATURAL GAS/COAL GAS GLASS ANNEALING FURNACE APM-RTS SPECIFICATION
序号
项目
型号APM-RTS主要技术参数 Specification
单位
APM-
RTS1200
APM-
RTS1500
APM-
RTS1800
APM-
RTS2100
APM-
RTS2400
APM-
RTS2700
APM-
RTS3000
APM-
RTS3300
APM-
RTS3600
1
网带宽度
mm
1200
1500
1800
2100
2400
2700
3000
3300
3600
2
网带高度
mm
980
3
网带速度
mm/min
10-500
4
许用最高温度
℃
620
5
炉膛高度
mm
350/400
6
炉膛断面温差
℃
±2
7
网带最大负荷
kg/㎡
90
8
不锈钢内胆厚度
mm
3
9
减速电机功率
kw
1.1-3
10
循环风机电机功率
kw
1.1-3
11
余热回收风机功率
kw
0.75-1.5
12
燃烧种类
天然气、液化石油气
13
燃烧机产地
意大利或德国
14
燃烧机工作压力
0.01-0.05或0.001-0.01
15
燃气控制
mpa
电磁控制或比例调节控制
16
温控方式
全自动独立控制
17
设备全长
mm
25000-28000
NO
NAME
UNIT
Mesh belt width
Mesh belt height
Mesh belt speed
Max temperature
Combustion chamber height
Temperature difference of section
Mesh belt max load
Thickness of inner tank
Power of reducer motor
power of circulation fan
power of waste heat recycling fan
fuel
NG/LPG
Origin of burner
ltaly or Germany
burner working pressure
0.01-0.05 or 0.001-0.01
gas control method
electromagnetism or proportional control method
temperature control method
automatic independent control
length of furace
